Ford Taurus 3.0L OHV V6 Oil Pan and Gasket
Date Added: 4/15/2016
Posted by:
 Patrick

Viewed: 1291 times

Torqe the 16x 8mm bolts to 108in lbs

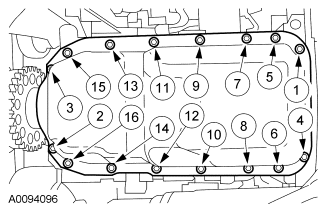

Here is the sequance you need to torque the bolts.

Make sure to use some RTV where the front cover meets the oil pan and engine on both sides and then in the coners of the arch where the seal meets the engine block.
